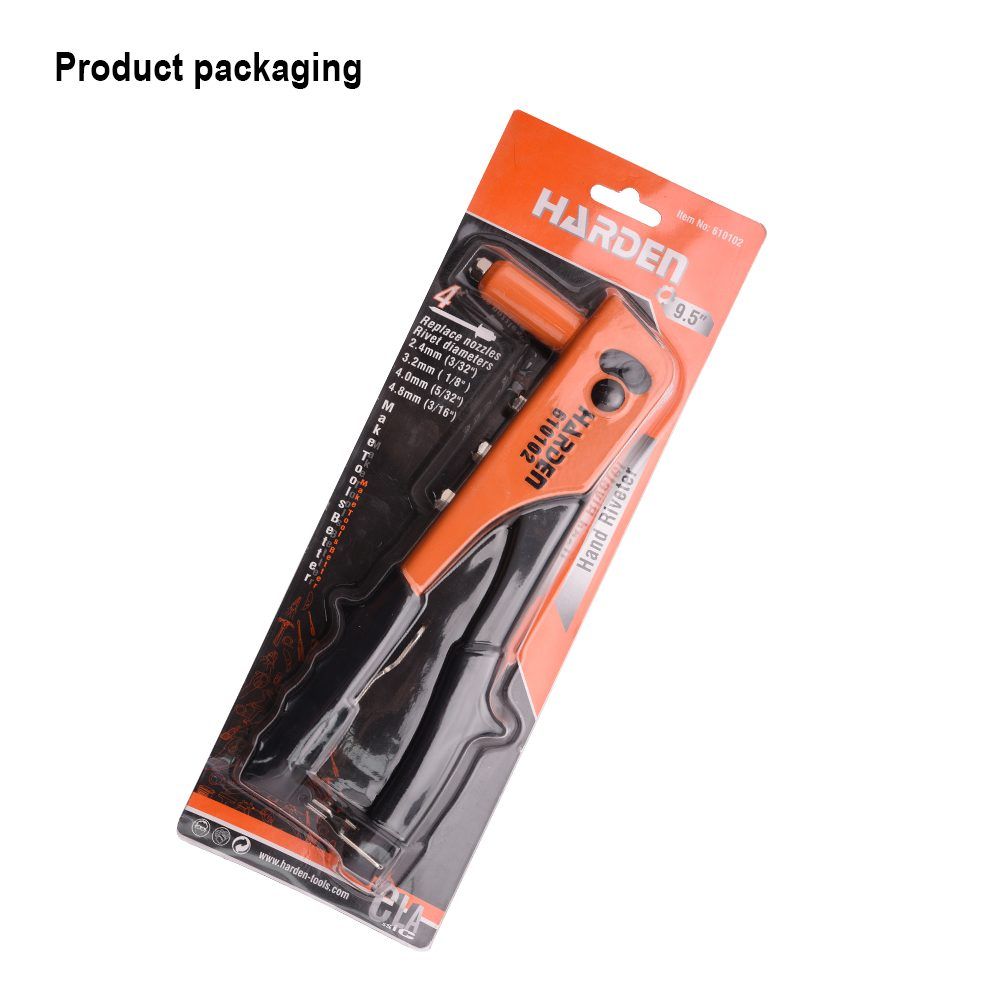

9.5" Hand Riveter

The mechanism is neat. A blind rivet is a hollow body with a mandrel — a steel pin — running through it. You slide the mandrel into the riveter's nose, push the rivet through the hole in both workpieces, and squeeze. The tool pulls the mandrel while pushing on the rivet body, so the mandrel's head deforms the far end of the body into a bulge on the blind side, clamping the pieces together. Keep squeezing and the mandrel snaps off at a designed weak point, leaving a permanent fixing. The whole thing takes two seconds and never needs access to the back.

That is why blind rivets dominate sheet metal work, ducting, cladding, signage, vehicle body repair, trailer and container work, and anywhere a joint is in a closed section.

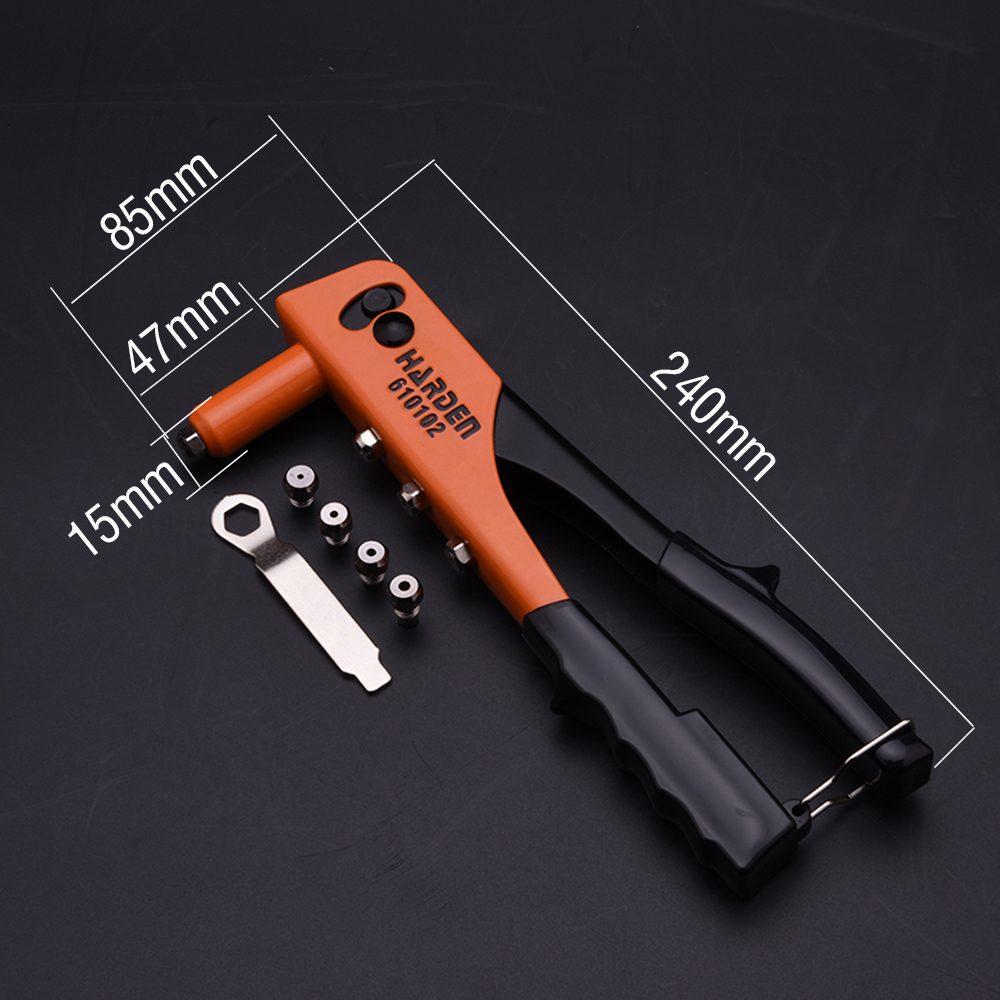

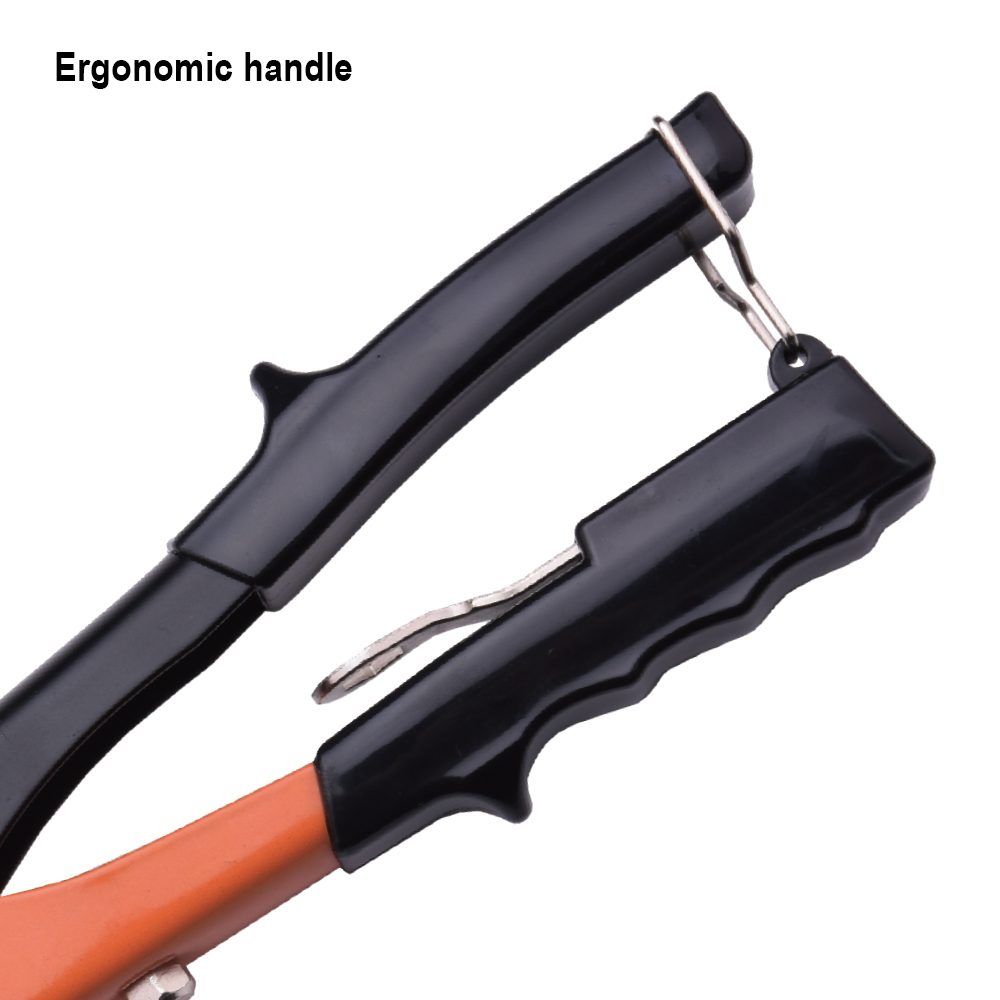

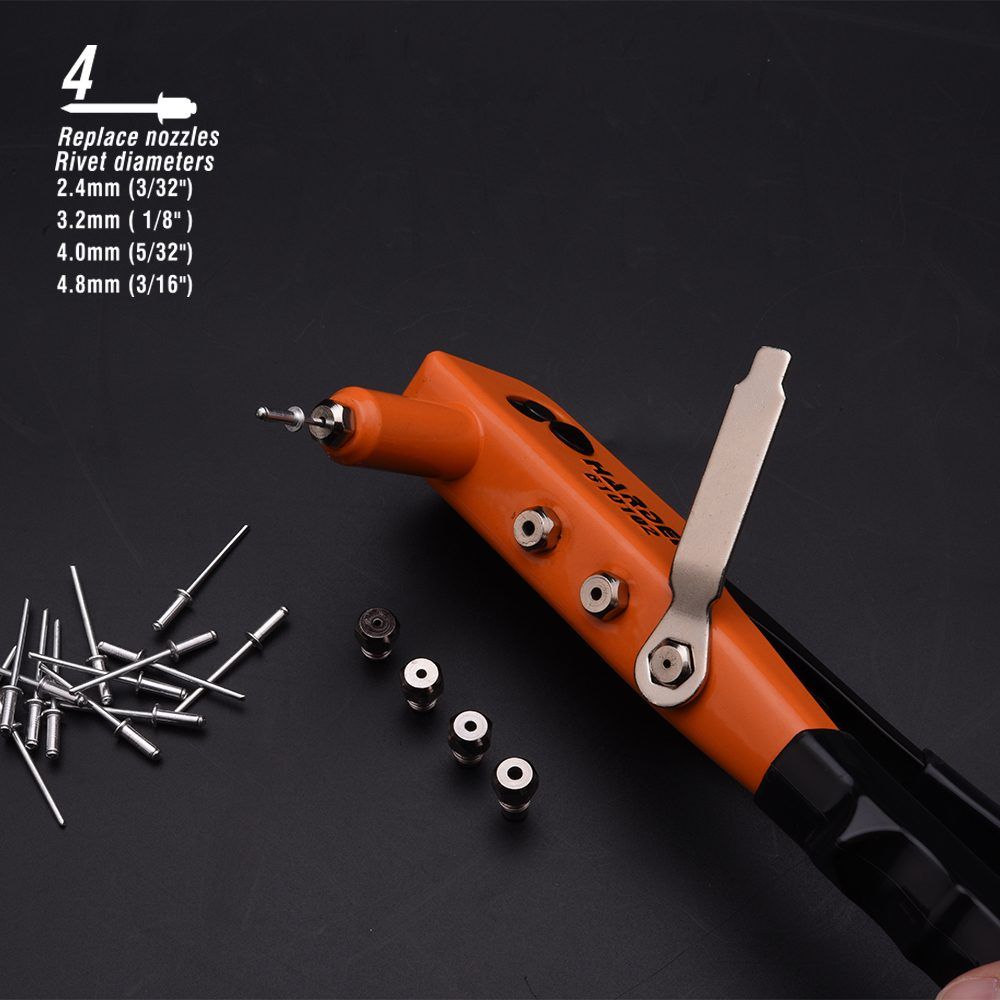

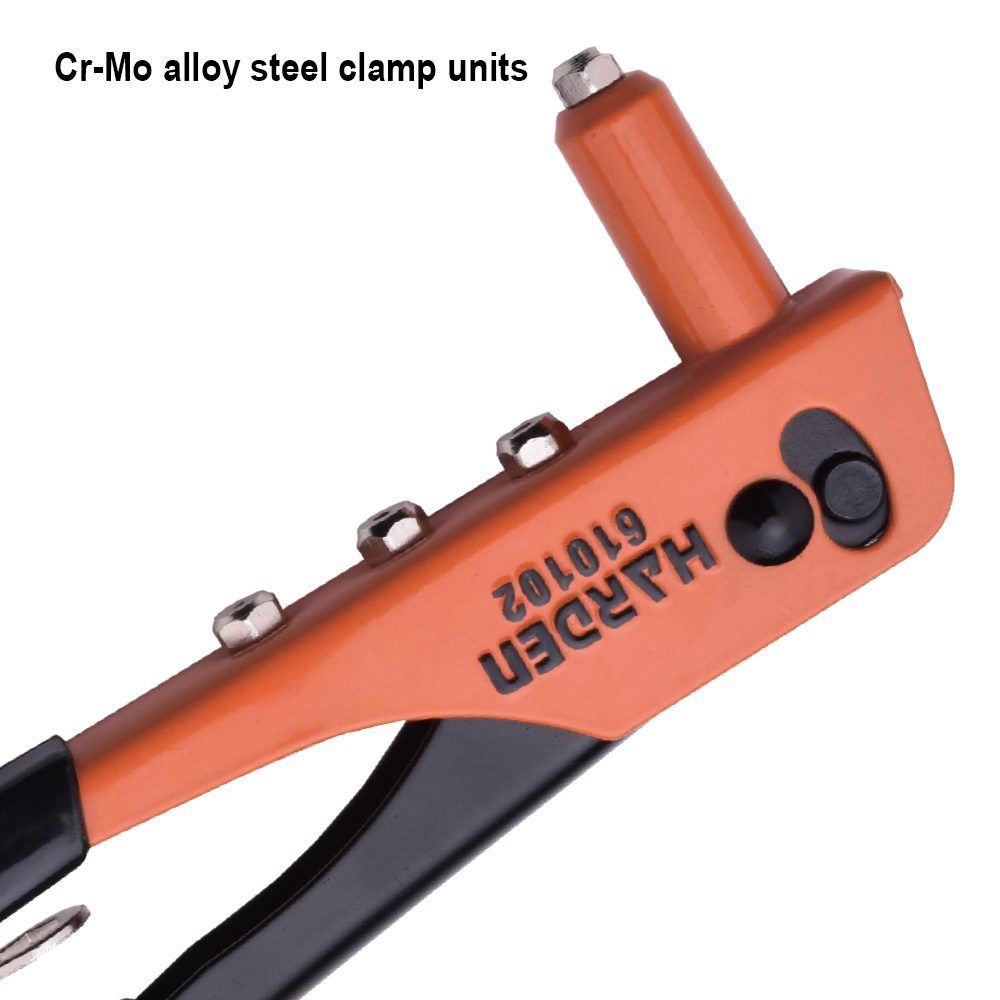

At 9.5 inches this is the compact riveter, made from quality steel with PVC grips, and suitable for single-handed use — which matters because the other hand is usually holding the workpieces in alignment. It takes 2.4, 3.2, 4.0 and 4.8mm rivets, covering the standard range.

The specification notes it provides a rigid permanent fixing, and permanent is the honest word: removing a blind rivet means drilling its head off.

The buyers are sheet metal fabricators, HVAC and ducting installers, signage and display makers, vehicle body and trailer repairers, roofing and cladding contractors, and hardware dealers.

Three habits. Match the rivet length to the total thickness being joined — too short and it will not form a proper bulge, too long and the joint stays loose. Drill the hole to the rivet's own size, since an oversized hole gives a rivet nothing to clamp. And collect the spent mandrels; they are sharp steel pins that end up in tyres, feet and machinery. Ask us on WhatsApp for a price with a box of rivets.
