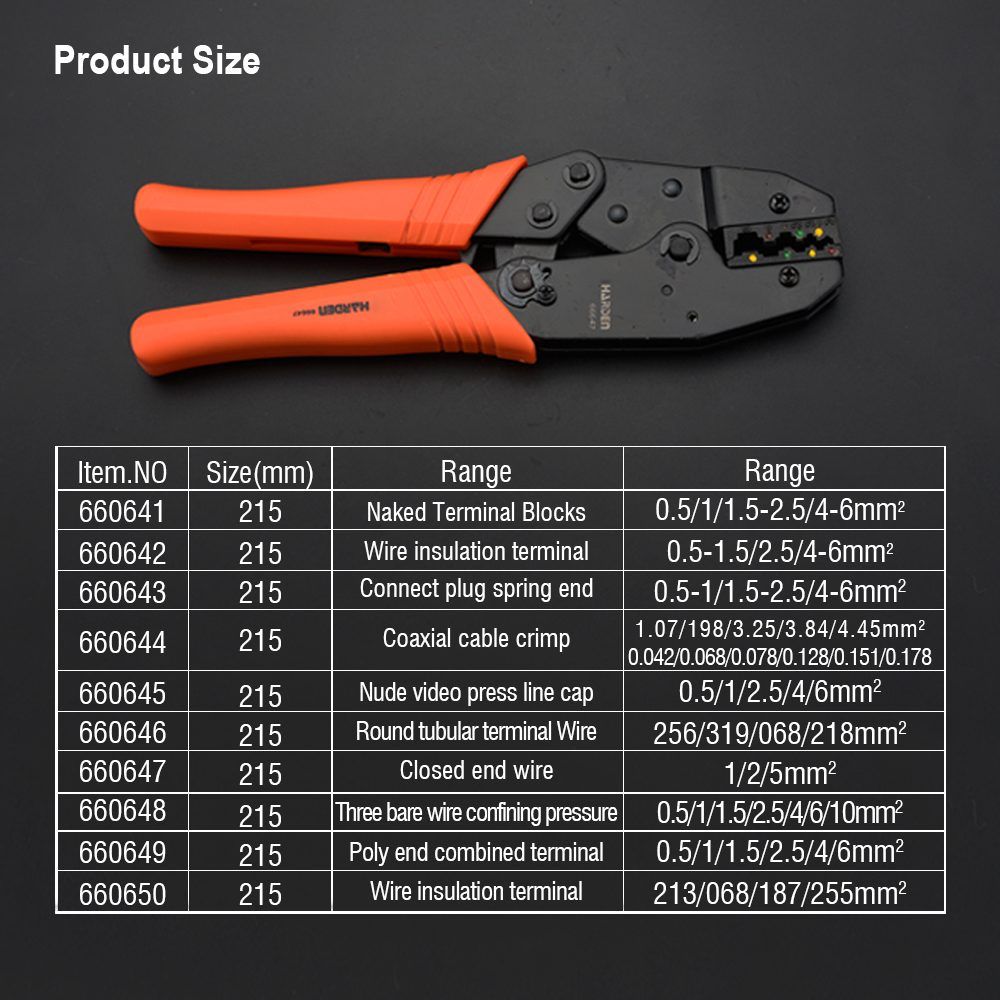

Ratchet Crimping Plier (Naked terminal, 0.15-0.5/0.5-1.5/1.5-2.5/4-6mm²)

The size coverage here is broad: 0.15 to 0.5, 0.5 to 1.5, 1.5 to 2.5 and 4 to 6mm². That runs from very fine instrument and signal wiring up to heavy final-circuit conductors, which makes this the one to reach for on a bench dealing with mixed work rather than one repeated size.

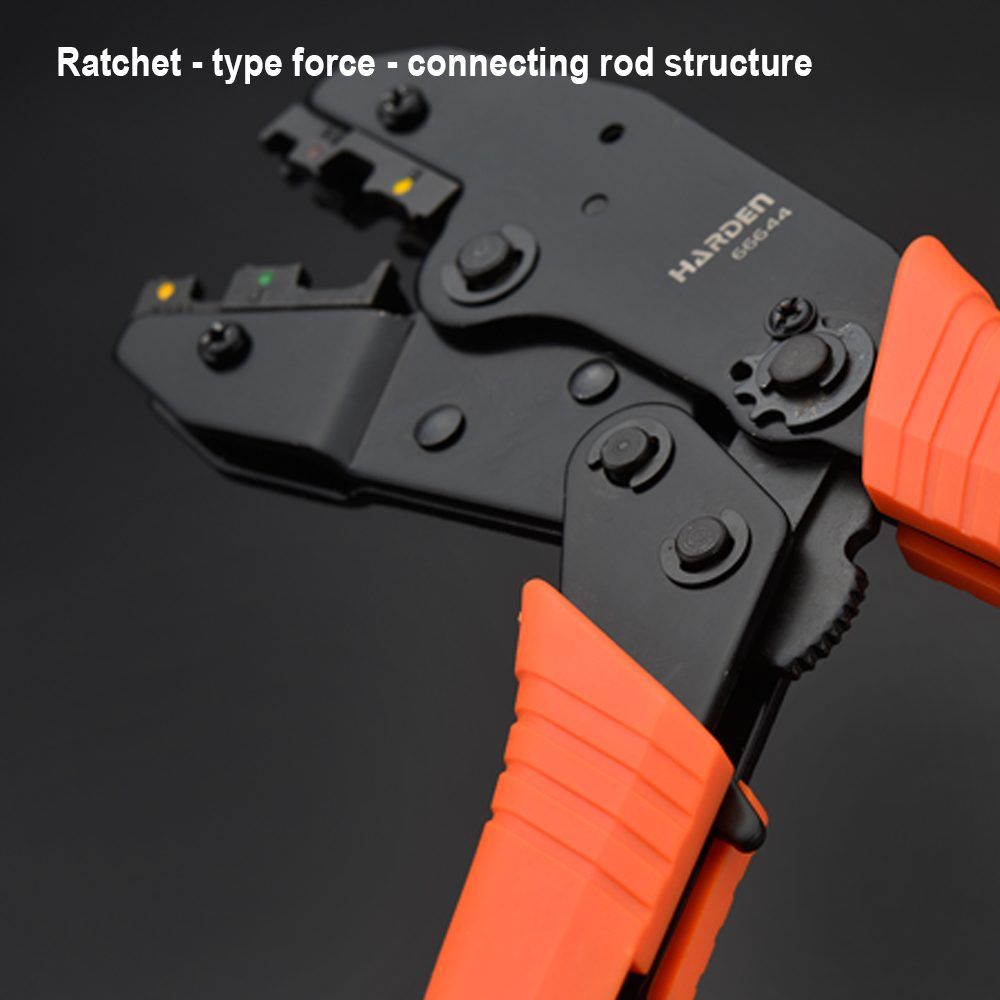

The mechanism is a full cycle ratchet, and it is the reason to buy a tool like this at all. The jaws will not release until the crimp has travelled its complete stroke. You cannot stop halfway, cannot decide the terminal looks crimped enough, and cannot produce the single most common invisible defect in electrical work: the under-crimped joint. A crimp that has gone only part of the way through its cycle is indistinguishable by eye, passes a continuity test and works perfectly on the day. What it lacks is the cold weld — the deformation that bonds conductor strands to barrel and seals air out of the interface. Without that, oxidation creeps in over months, resistance climbs, the joint warms under load, and it fails as an intermittent connection or as heat in a panel.

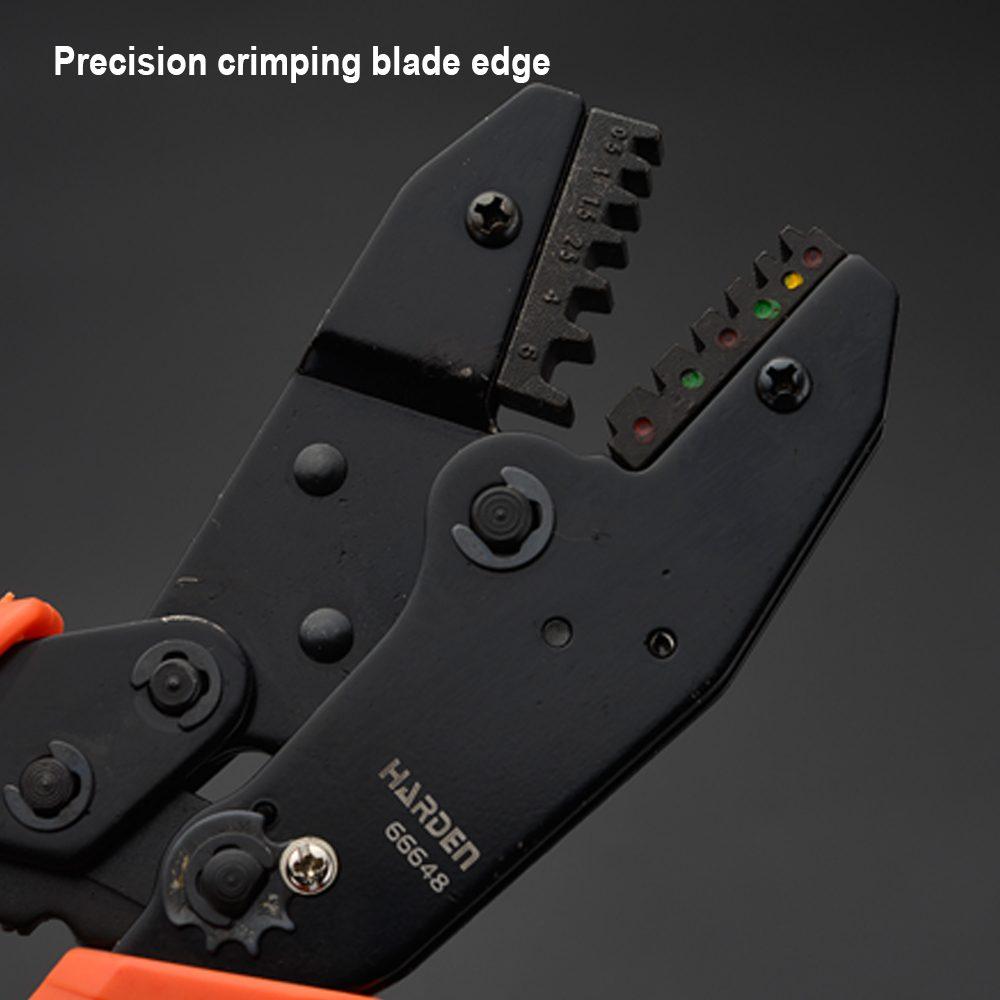

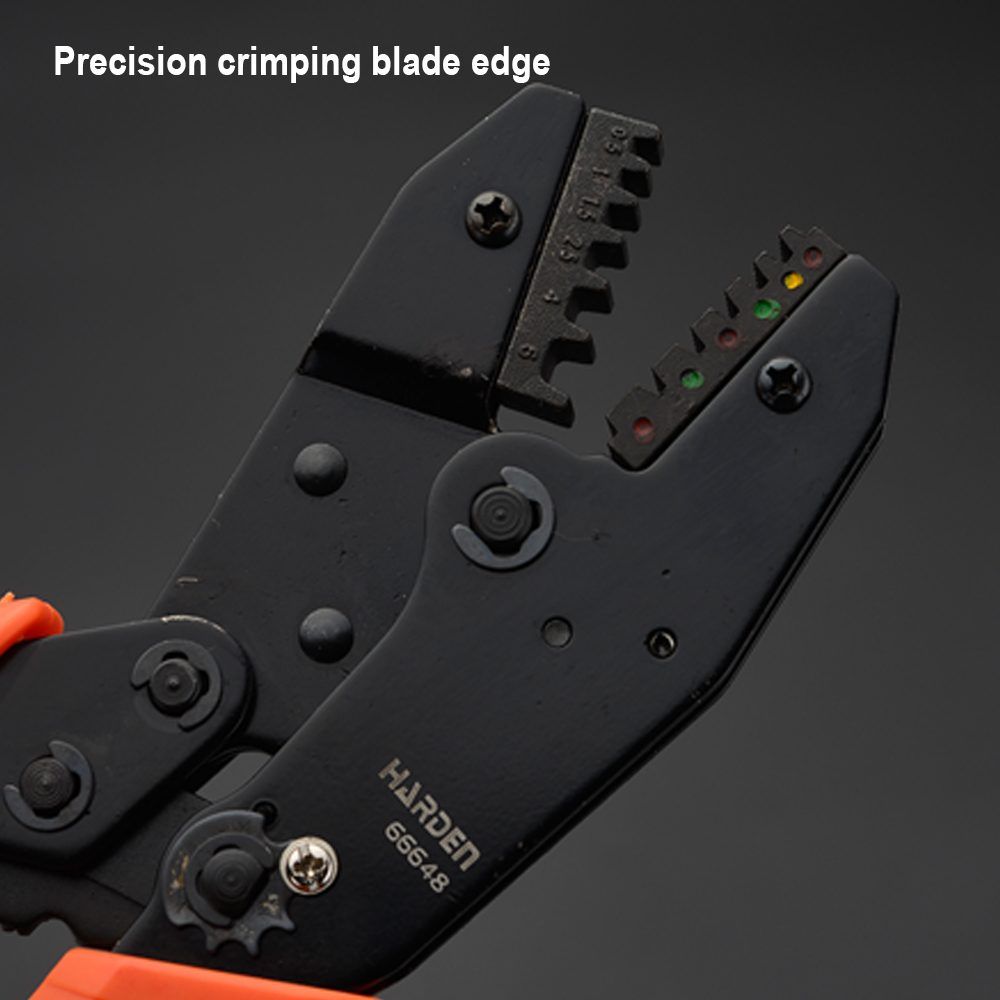

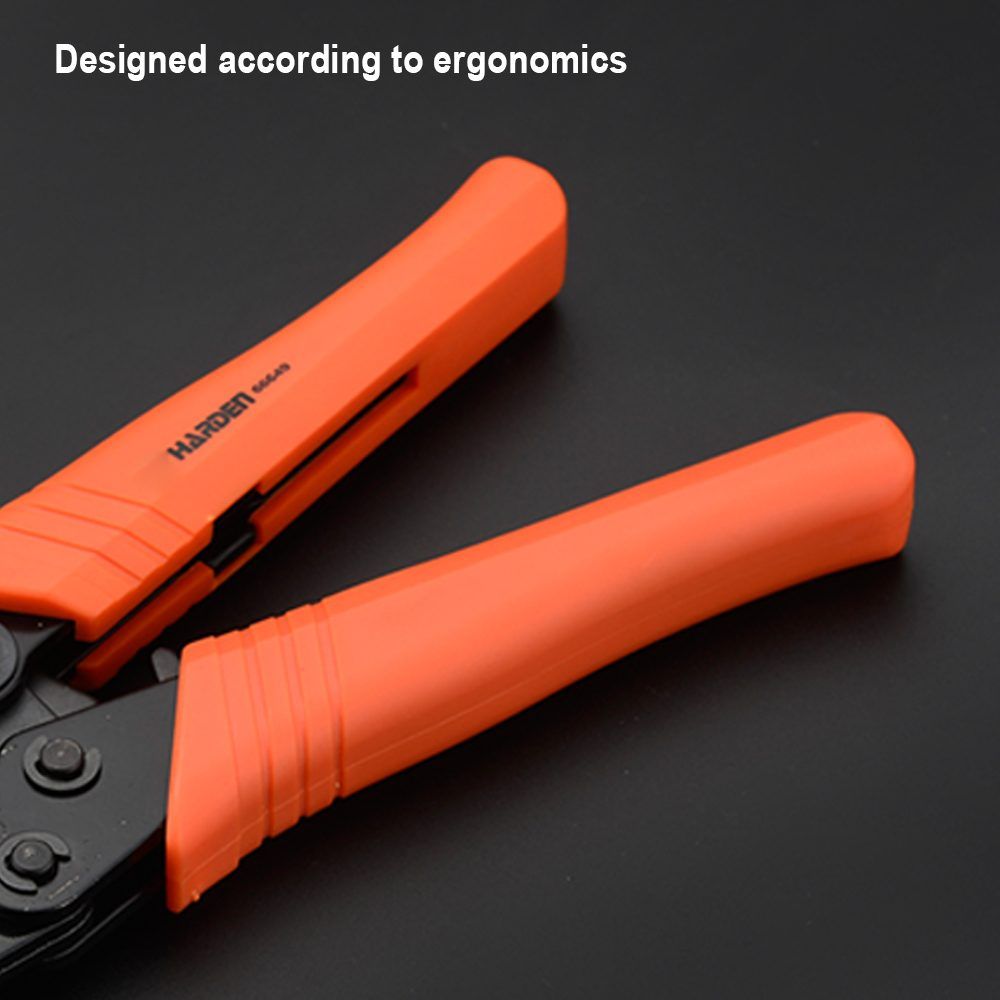

Crimp pressure is adjustable, which keeps the tool honest as jaws wear and as terminal barrels vary between manufacturers. The jaws are carbon steel with a chemical black finish — a corrosion-resistant conversion coating that adds essentially no thickness, which matters on a die where small dimensional changes alter the crimp form. Handles are PVC.

The buyers are panel and control builders, instrument and automation technicians, electricians and electrical contractors, auto-electricians, equipment and machinery manufacturers, and hardware dealers supplying the trade.

Some discipline pays off. Select the die section by the terminal size, not by the cable, since the terminal is what is being formed. Strip to the barrel length so the copper fills it with no bare wire beyond and no insulation caught inside. Seat the terminal squarely in the die before you begin the stroke. And pull-test the first crimp from each batch of terminals — a correct crimp will not pull off, and one that does means the rest need checking. Ask on WhatsApp for a price, and tell us which terminal sizes you use most.
