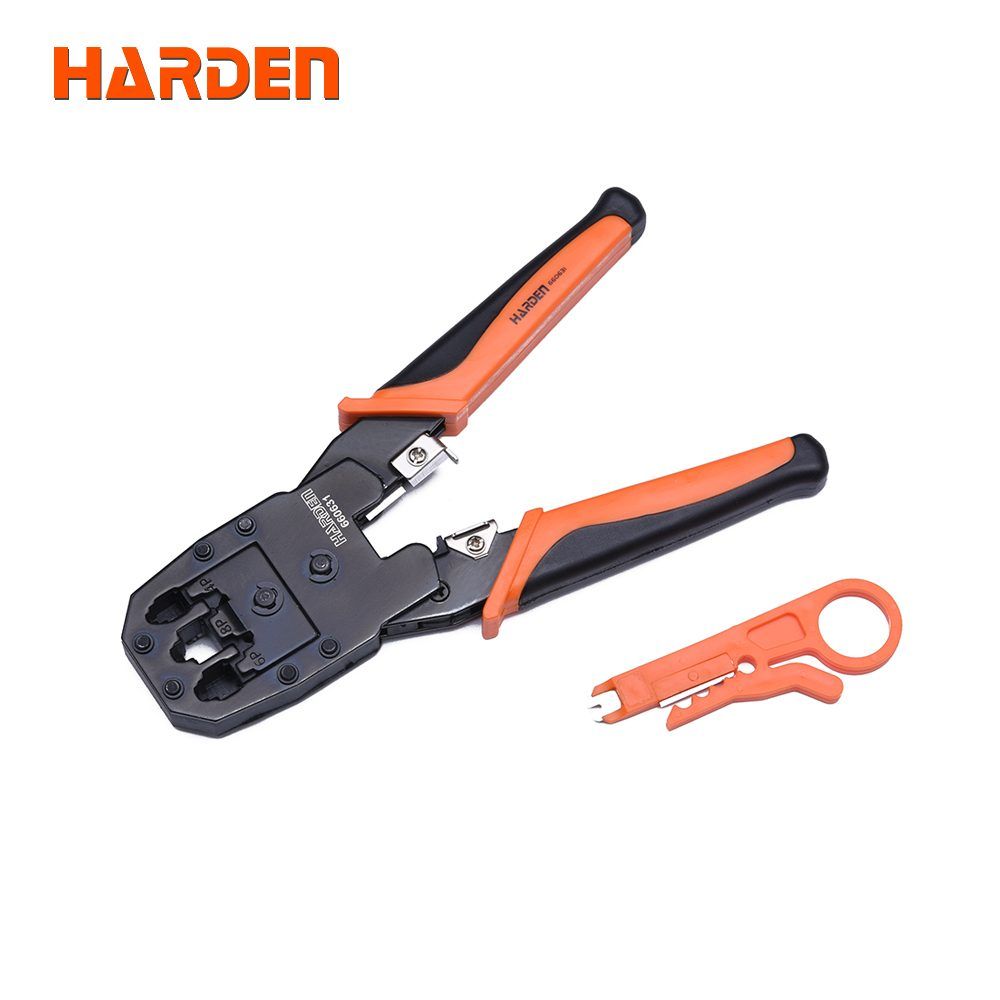

Modular Plug Crimping Tool

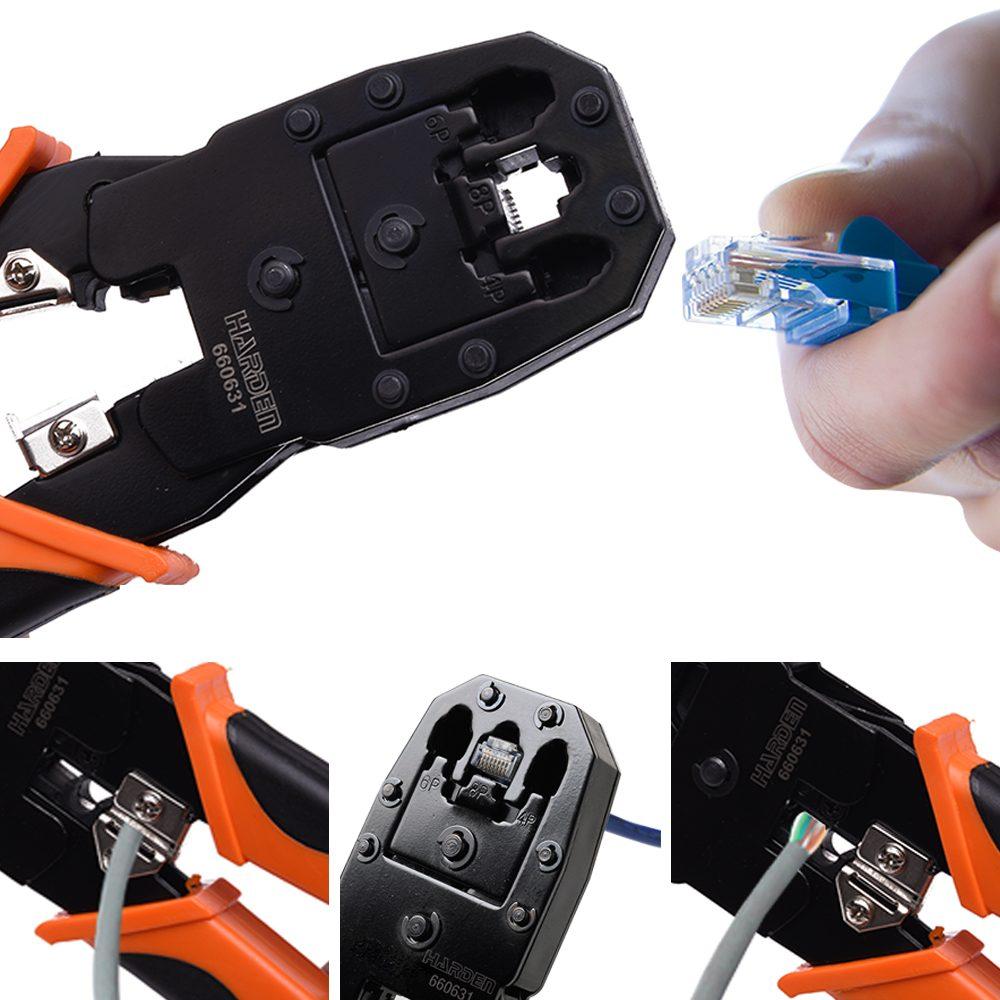

What the tool actually does is worth describing, because a modular plug is a neat piece of engineering and the crimp does two separate jobs in one squeeze. The plug arrives with its gold contacts sitting proud in their slots. You trim the conductors square, arrange them in the correct colour order, slide them fully home so every one touches the front wall of the plug, and squeeze. The die drives each contact down so its blades pierce the insulation of the conductor beneath it and bite into the copper — this is insulation displacement, which is why the individual cores are never stripped. At the same time, a second part of the die presses the strain relief bar down onto the cable jacket, so any pull on the cable is taken by the jacket rather than by eight thin conductors.

Both halves matter. A plug crimped without the strain relief closing properly will work perfectly on the bench and then fail intermittently once somebody moves the equipment, which is one of the most frustrating faults in a building.

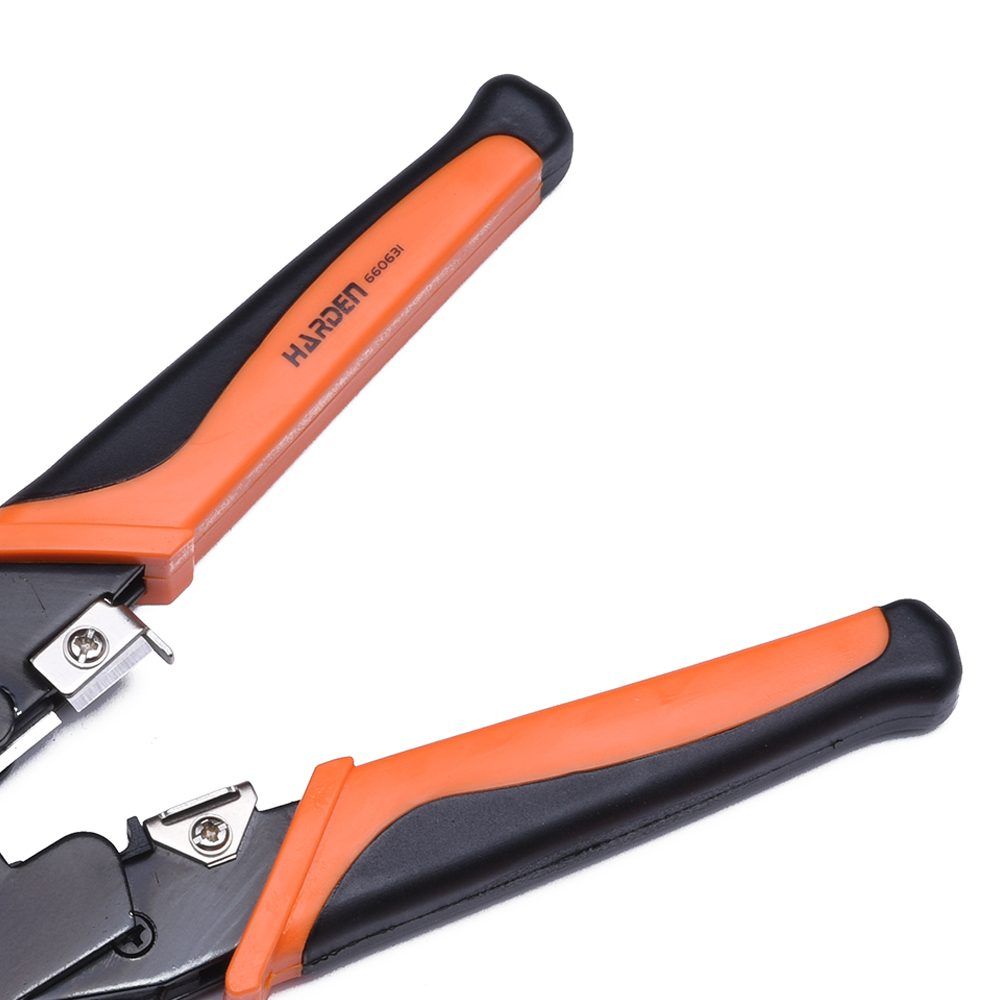

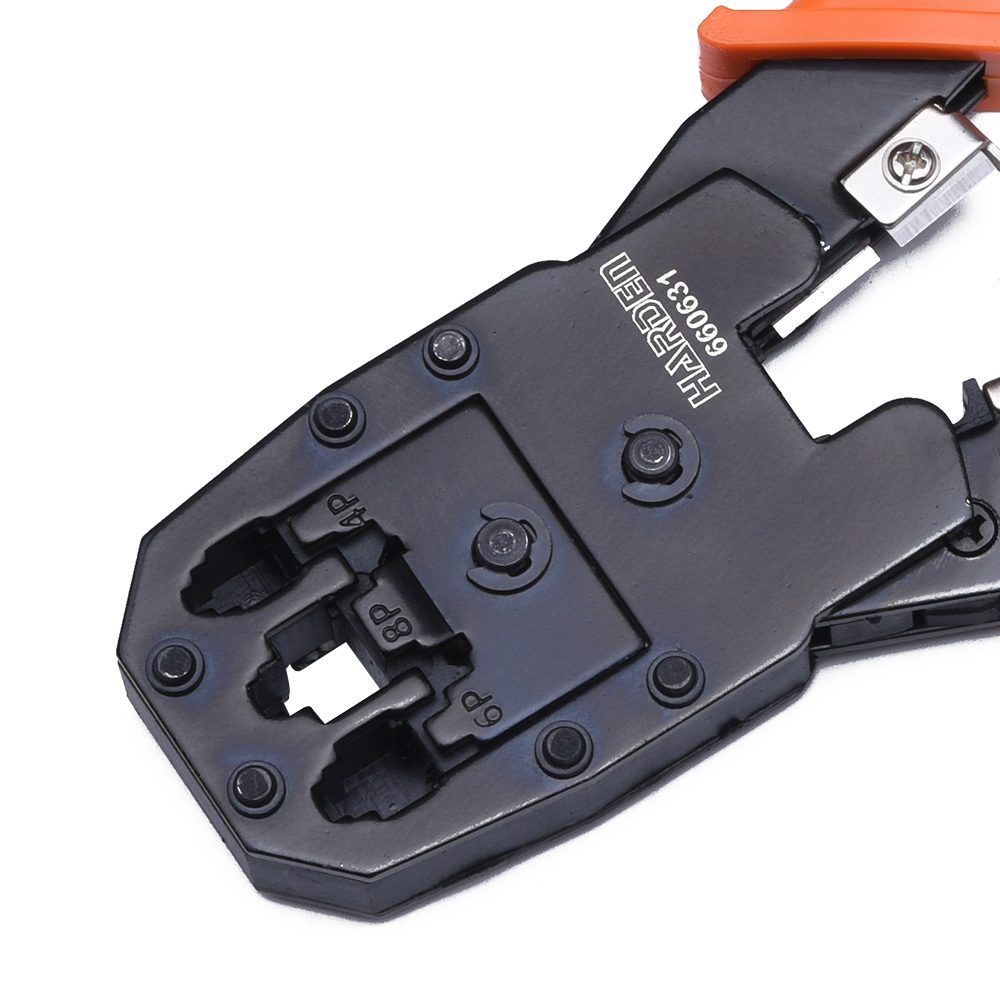

The tool is made from hardened and tempered carbon steel with chemically blacked jaws and PVC handles. Hardened and tempered is the correct treatment for a die: hardening gives the form its wear resistance so it stays dimensionally accurate over thousands of crimps, and tempering afterwards removes the brittleness so it does not chip. A die that has spread or worn produces plugs that do not seat their contacts fully, and the resulting connection passes a continuity check while failing at speed. Chemical blacking is a conversion coating that resists corrosion without adding thickness, which matters on a die where a few hundredths would change the crimp.

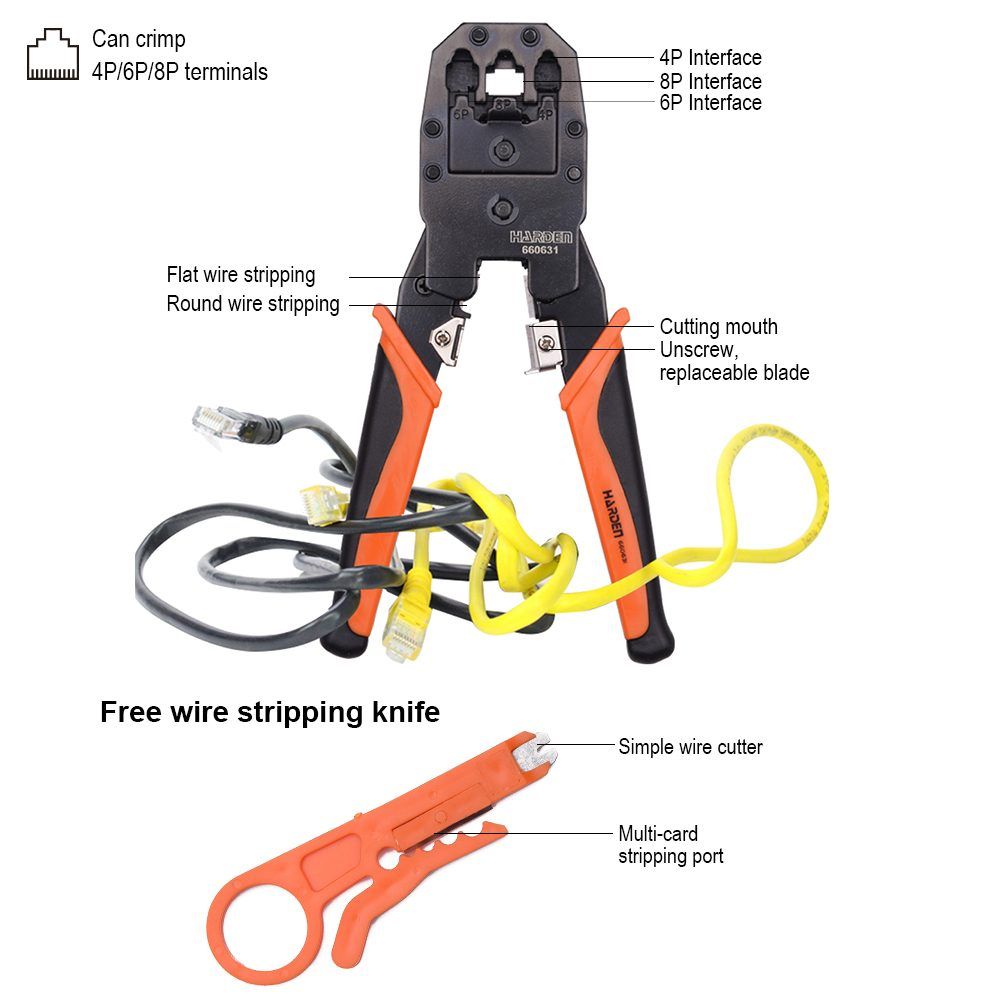

It is complete with wire cutting and stripping facilities, so one tool trims the cable square, removes the outer jacket and crimps the plug.

The buyers are network and data cabling installers, electricians running structured cabling, IT support and facilities staff, telephone and communications technicians, CCTV and access control installers, and hardware dealers supplying installers.

Get the details right and the terminations last. Trim the eight conductors dead square before insertion, because a plug is only as good as the shortest conductor reaching the front. Keep the untwisting of the pairs as short as possible — untwisting more than about half an inch degrades performance at higher speeds. Keep the jacket inside the plug so the strain relief grips it. And test with a cable tester rather than by plugging it in. Message us on WhatsApp for a price with plugs and a tester.
